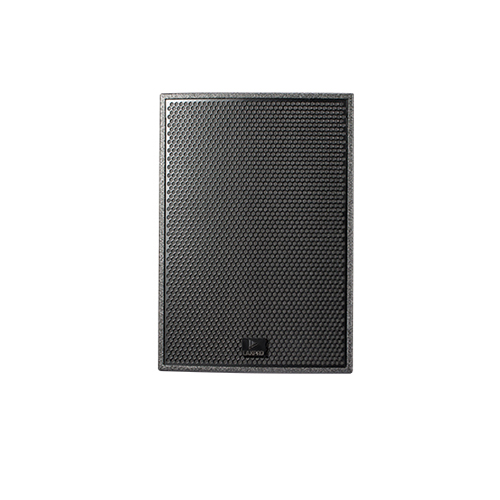

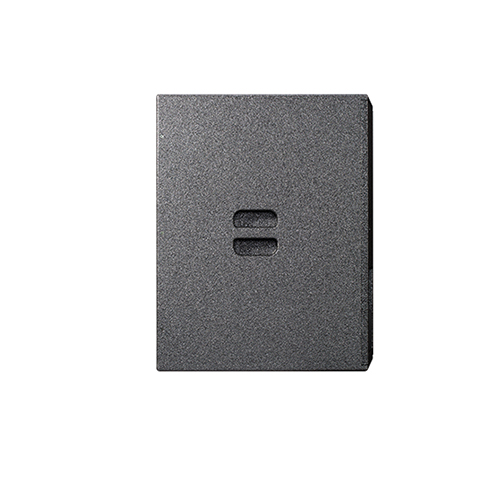

LP12CO A

LP12CO A

PRODUCT DESCRIPTION

Precise pointing angle
The LP12CO is the outstanding full horn speaker system in the LAXPRO brand. The mid-low frequency chassis and the mid-high frequency driver of the coaxial unit with its horn drivers are well balanced, so it can be used for long-distance projection applications.
This means that for the standard two-speaker combination installation mode, the near-field audience and the far-field audience feel the same sound quality.

APPLICATION

Theater theater
Live stage performance
Large indoor or tent
(Multiple combinations are used as the main PA system, or as a mid-high frequency speaker with the LAXPRO subwoofer.)

FEATURES

  • Two-way point sound source system.
  • Coaxial, full horn type load structure.
  • FIRTEC™ unique DSP processing technology.
  • High-efficiency and high-power PWM amplifier circuit, no fan required, quiet heat dissipation.
  • Input accepts digital (standard AES/EBU) signals and analog signals.
  • Standard TCP/IP network protocol control system for real-time monitoring of signal and temperature status.



SPECIFICATIONS

Frequency Response 60-20 000 Hz +-3dB
Power > 1000Wrms (1000W + 120W)
SPL 134dBpeak
Dispersion (H/V)

90 degrees/60 degrees, rota table

Crossover point

900Hz

Driver Unit

1 x 12 "- Conical Driver

1 x 1.5" - Compression Driver

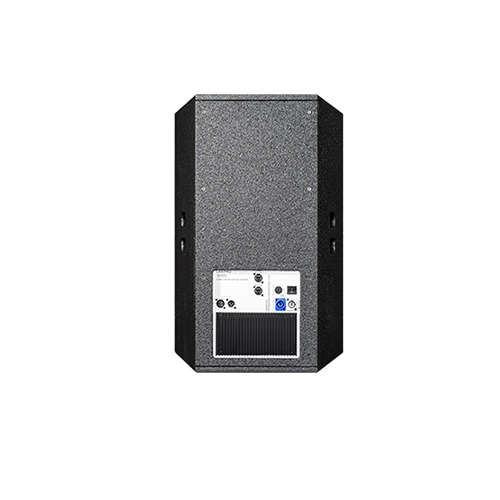

Power amplifier

2 x PWM, SMPS, built - in


Connectors

2 - way with FIR, built - in

Dimensions(H x W x D)
705 x 485 x 550 mm
Net Weight
32kg
Features
6 hanging points
