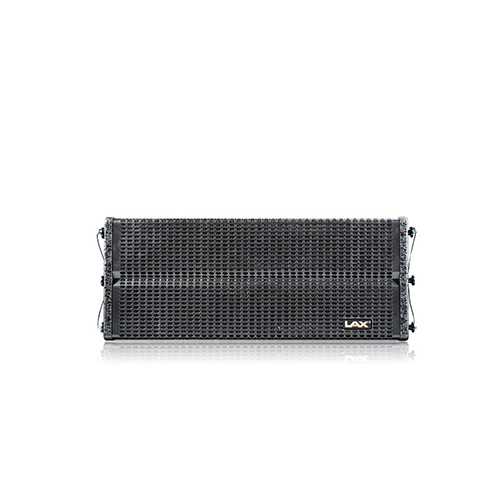

AT208A

Dual 8" Two-Way Active Line Array Speaker

APPLICATIONS

For the powered ATEC series we partnered with one of the world's leading amplifier manufacturers to create a high powered active line array speaker using the most efficient Class D amplifier design and the very latest high-current Switch-Mode Power Supply technology.

The AT208A features extremely high quality cabinets made from Baltic birch plywood. Because we design and build our products in our own manufacturing facility in China you can be assured of our commitment to producing an extremely high quality product.

Furthermore our in-house R&D centre is also home to an impressive measurement and testing lab where we rigorously check every product for sonic quality safety of rigging systems exposure to dust and moisture and electronic safety and emissions. We stand by the quality of our products we build them right and we build them to go the distance.

FEATURES

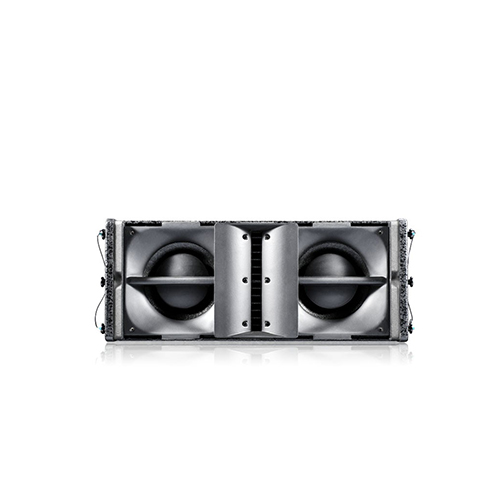

Two neodymium compression drivers with a 1.4" horn throat and a 44 mm voice coil ensure smooth and detailed high frequency reproduction.
The low frequency is handled by a 2 x 8" high output neodymium woofers with a 50 mm voice coil.
Built-in Class D amplifier designed in Europe.

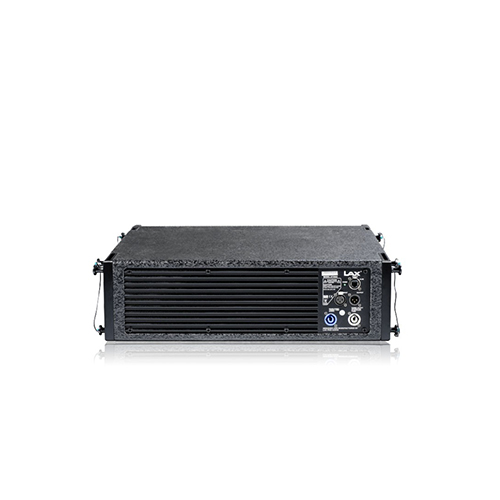

Ethernet port for network access from a PC/Mac to make critical and remote DSP adjustments.
Precision-made 24 mm 18 mm and 15 mm Baltic birch plywood cabinet (up to 15-ply) and finished with durable paint for touring and rental use.
Reinforced V-Slot grille reduces internal vibration noise.
The integrated rigging system has a 7:1 safety coefficient.
Designed for fixed-installation applications and outdoor use.
Recommended for use with ATL118BA Subwoofer.

SPECIFICATIONS

Frequency Response	85Hz - 18Hz (+- 3dB)
Dispersion ( H )	100°
Sensitivity (1W / 1m)	HF: 103dB LF: 99dB
SPL (1m)	HF: 132dB (Continuous) / 138dB (Peak) LF: 119dB (Continuous) / 126dB (Peak)
Driver	LF: 2 x 8" Neodymium / 50mm Voice Coil HF: 2 x 1" Exit Compression Driver / 44mm Voice Coil
Enclosure	Phase Inverted
Power Rating (AES)	HF: 400W LF: 200W
Nominal Impedance	HF: 16 ohm LF: 16 ohm
Power Output	1 x 1000W @ 8 ohm
Amplifier	Class-D SMPS
Portect Circuit	Short circuit overheating and power stage overload protection systems
Power Supply	PowerCON Input / Output
DSP	Build - in DSP system processor
Dimensions (W x D x H)	550 x 440 x 224 mm
Net Weight	25 kg

ACCESSORIES

TYPE	ITEM NUMBER	DETAILS	IMAGE
Flying Kit	AT208A FK	Flying Kit for AT208A (maximum 16 boxes)
Flight Case	AT208A FLC	Flight Case for A208A (4 in 1)
Flight Case	ATL118BA FLC	Flight Case for ATL118BA (1 in 1)
Flight Case	AT208A-FK FLC	Flight Case for AT208A Flying Kits (2 in 1)
Rack	RK 12U	12U Heavy Duty Rack
Rack	RK 16U	16U Heavy Duty Rack
Rack	RK 20U	20U Heavy Duty Rack
Rain Cover	AT208A RC	Rain Cover
