AT210

AT210

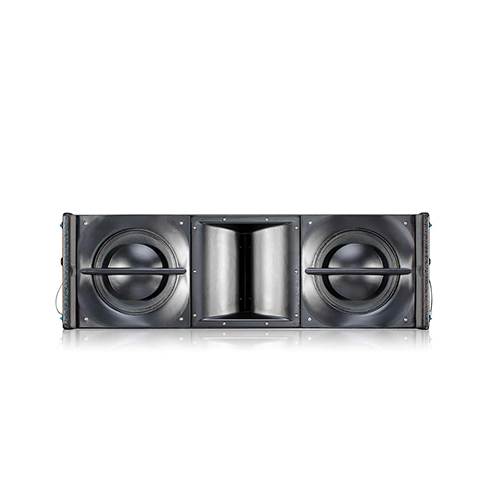

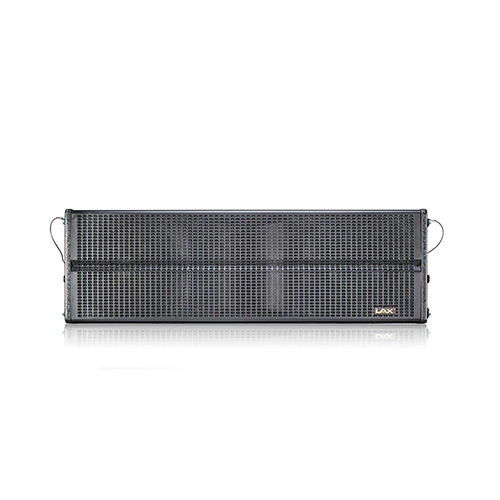

2 X 10" Two-Way Full Range Line Array

Application

  • The application of DCH-Directivity Correction Horn ensures the constant directivity in the high frequency range.
  • The drivers of high frequency and low frequency are both incorporates neodymium magnets for higher efficiency and power handing with reduced weight and dimension.
  • Bass reflex enclosure has internal symmetrical heat-dispresion tubes to prevent the system from overheating.
  • The innovated rigging hardware make it easy to hang 16 cabints the safety coefficient may reach 7:1. The variable hanging modes extend the usage of the cabinet.
  • Designed for fixed-installation touring outdoor concerts stadiums and for all demanding sound reinforcement applications.






SPECIFICATIONS

Frequency Response 80Hz - 18Hz (+- 3dB) / 70Hz - 20Hz (- 10dB)
Dispersion ( H x V ) 100° x 10°
Sensitivity (1W / 1m)
HF: 110dB  LF: 103dB
SPL (1m)

HF: 133dB (Continuous) / 136dB (Peak)

LF: 133dB (Continuous) / 136dB (Peak)

Driver

LF: 1 x 10" Neodymium / 65mm Voice Coil

HF: Titanium diaphragm / Neodymium / 75mm Voice Coil

Enclosure Phase Inverted
Fittings
AT210 Flying Kit
Power Rating (AES) HF: 110W  LF: 600W
Nominal Impedance
HF: 8 ohm  LF: 8 ohm
Connectors NEUTRIK NL4MP x 2  HF:2+2-  LF: 1+1-
Dimensions (W x D x H)

898 x 410 x 272 mm

Net Weight 33 kg
